Super Patch Kit - Park Tools

Item # GP-2

Super Patch Kit

We worked with 3M to produce a self adhesive tube patch that stretches, flexes, twists, and turns right along with the tube. No messy glue, no bulky packaging. Lightly roughen tube with the included sandpaper, clean, apply patch, and you’re ready to go.

• Six patches with sandpaper in a neat little carry along box
• Available individually carded (GP- 2C) or in a handy 48 kit counter-top display

Packaged carded: GP-2C

Yang terbaik dari Park Tools-tidak memerlukan gam,tampalan yang kemas,tahan dan mudah digunakan. Harga mampu milik dan yang penting cukup mesra alam. Kepada yang berminat hubungi Maswan di 0137806780 - pos disediakan.

Happy Birthday Kaisara !!!!

Kaisara Luthfiyah

DOB : 11 November 2010

Hari ni genap setahun usia Kaisara. Belum difikirkan apa plan untuk sambut birthday girl ni...

Salam Aidilfitri 2011

Andorra

Salam Aidilfitri buat semua, mohon maaf atas salah dan silap.

Tour De France 2011

Paris

Tour De France
20 August 2011 till 9 September 2011

Spinner - Fork Repair & Services

Spinner - Fork Repair & Services

 After repair & service

Minyak kotor dan berkeladak

 Stanchion corrosion

Corrosion akibat minyak kering

Spul & Rebound system-tercabut mungkin disebab memusing knob rebound terlalu kuat.

Charges :

1. Seal/O-Ring = RM18.00

2. Fork Oil = RM15.00 (150ml) Maxima Fork Racing Oil

3. Cir-clip = RM1.00
4. Labour Charge : RM15.00
Total : 49.00

Warranty
14 Days warranty excluding courier charges

Park Tool - Fold Up Hex Wrench Set AWS-10

Park Tool AWS-10

The Park Tool Fold Up Hex Wrench Set combines all the popular hex wrench sizes into one convenient fold-up tool, eliminating the need for a mess of loose tools. Its multi-position composite handle is comfortable, lightweight, slip-resistant, and 40% stronger than steel handles.

• Includes 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, and 6mm hex wrenches
• Made from Bondhus Protanium™ high torque industrial steel for long life
• Chamfered tips for a perfect fit

Packaged carded: AWS-10C

Review

Memang tak menghampakan dan aku rasa hex wrech ni akan tahan lebih lama dari yang aku gunakan sebelum ni. Kalau berminat bolehlah hubungi saudara Maswan Effendy di talian 013-7806780

Juicy 3-Disc Brake Repair & Service

Juicy 3-Disc Brake Repair

Major Problem :
1. Caliper piston jammed
2. Lever piston broken
3. Reservoir Seal

 Keadaan brake yang diterima..mungkin sudah lama tidak digunakan.

 Sebelah kanan-seal yang telah rosak

Sebelah kanan new piston

Masih perlukan beberapa spare part untuk repair dan ambil sedikit masa. Not worth it kalau order part yang baru sebab too costly. TBC with owner...

Park Tool - DT-2 & CC-3.2

Park Tool

DT-2 Rotor Truing Fork & CC-3.2 Chain Wear Indicator

DT-2 Rotor Truing Fork

Specially designed, and precisely manufactured to gently adjust bent or damaged brake rotors. Each DT-2 features two different slot depths laser cut from high quality steel. Centered handle is vinyl dipped for comfort.

Chain Wear Indicator

A worn chain shifts poorly and wears sprockets at an accelerated rate.  The CC-3.2 is a “go-no go” gauge designed to accurately indicate when a chain reaches .5% and .75%, the points at which most chain manufacturers suggest replacement.  The updated CC-3.2 is longer, more accurate and features permanent measurement markings.

Review

Product pertama Park Tool yang aku miliki. Tq to Kona From Pekan Nenas JB yang tolong belikan.

Spinner Enduro-Fork Services (2)

Spinner Enduro-Fork Services

New Seal

New Oil

Nice & Clean

Owner : Joy Sri Serdang

Cost :

1. 100ml/cc Maxima Racing Fork Fluid = RM10.00

2. Seal/O-Ring = RM25

3. Labour Charge = RM10

    Total : RM 45.00

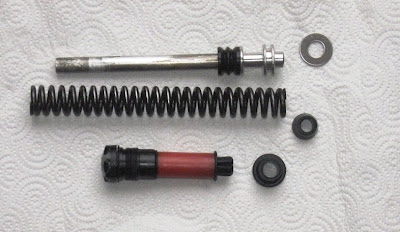

Manitou Comp 100- Fork Services

Manitou Comp 100- Fork Services



 Before



After

After

Owner : Zafifi

Service Charge : RM25

Torque Wrench-Bike Hand

Bike Hand 1/4" Torque Wrench

Product No : YC-617-23

 Product Description :
- 1/4" Torque Wrench
-  2-24 NM
- Torque Set 3/4/5/6/8/10 mm and T25 Torque
- Price Purchase : RM150 (Seng Aik Trading)

Since Bike Hand dan Super B keluarkan Torque Wrench ini semua orang dah boleh jadi "macam pro mekanik". Sudah lama mengidamkan alat ini akhirnya sampai juga di tangan. Tq to Abra Setia Alam yang sudi tolong order dari Taiwan through Seng Aik Trading.

Aku belum boleh review tool ni kerana ini first torque wrench yang aku guna tetapi aku sarankan mana-mana rider yang suka DIY dapatkan alat ini. Terlalu banyak gunanya dan yang pasti lepas ini tiada lagi skru yang kurang ketat atau terlebih ketat.

RST F1RST Air Platinum - Fork Repair

Rapid Suspension Technology
F1RST Air Platinum 2010

Owner-LBS Setia Alam



 Stanchion

 Masih seperti baru...

 Lock-out dan Rebound boleh di repair.

 1. Tukar clip

 2. Tukar O-ring

 3. Minyak baru

 Air System

Beberapa part yang rosak-perlu dapatkan spare part dari RST

Solution

Pelik juga bila tengok keadaan fork ini bila di autopsy - punca rosak belum kenalpasti berkemungkinan juga fork ini sememangnya kurang lasak untuk dilenjan di offroad.

Dah aku fikirkan beberapa alternatif untuk repair fork ini just perlu dapatkan confirmation dari owner terlebih dahulu. Beberapa modifikasi perlu dilakukan -  Masalah utama yang perlu di fikirkan penyelesaiannya ialah skru rod assembly yang bersambung dengan lower leg telah patah/pecah-tidak dapat di skru pada lower leg.

Untuk sementara ni aku cuba e-mail RST bertanyakan spare part dan kos.

Spinner Enduro-Fork Services

Spinner Enduro-Fork Services

 32 mm Stanchion

 Lower Leg

 Air System

Damping System (Lock + Rebound)



New Seal/O-Ring

Cost :

1. 120ml/cc Maxima Racing Fork Fluid = RM12.00

2. Seal/O-Ring = RM25

3. Labour Charge = RM10

    Total : RM 47.00

Owner : Abra Setia Alam

Disc Brake Repair & Service

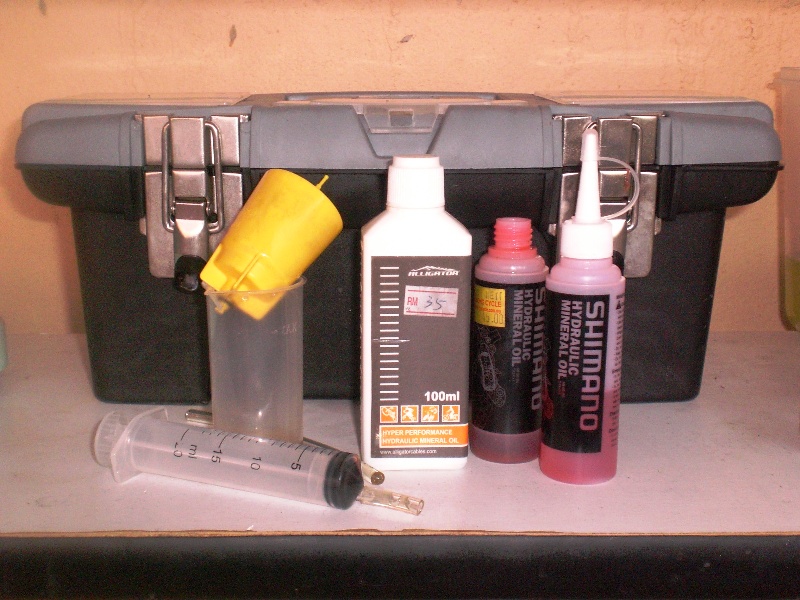

Bleeding Tools

Contoh Brake

Disc Brake Repair & Service

Full Servis
1. Brake Depan & Belakang
2. Mineral Oil Shimano or DOT 4.5/5
3. Bleeding baru

Price RM30

Setting
1. Tambah minyak
2. Cleaning Brake Pad
3. Setting baru

Price RM10

Shimano BR-M575 - Disc Brake Repair & Service

Shimano BR-M575

Disc Brake

Owner  : Azahari

              Kepong KL

Problem : Piston Jammed

Solution : Full overhoul & Bleeding

Cost      : Mineral Oil + Labor Cost = RM15

MTB Fork Oil

 Racing Shock FLUID

Price : RM70

3wt - 7wt - 10wt

Racing Fork FLUID

Price :RM60

5wt - 7wt - 10wt - 15wt

Click For More Info

Marzocchi EXR Race 2004 - Fork Repair



RST F1RST Air RL Platinum Fork Services

Rapid Suspension Technology
F1RST Air RL Platinum 2010

Exploded View-RST First Platinum RL

Oil Chart
1. Damper System (OCR) - 72ml
2. Air System - Mineral Grease

Sebelum Servis
Dust Seal tertanggal
Mungkin disebabkan tekanan udara fork tidak dilaras dengan betul....

Step 1 : Removing Lower Leg

Berpasir - memang perlu diservis

Terpaksa dicuci dengan shampoo since dipenuhi pasir serta lumpur.

Step 2 : Air System
80mm - 100mm boleh laras
Setelah diservis

Step 3 : Damper System
Oil Bath - 72ml.
Teknologi hampir sama dengan Manitou.
Good Damping System (OCR)

Minyak perlu ditukar.

Step 4 : Installation
Masalah untuk setup Lock-up since fork ini tidak dihantar bersama Remote Lock-up.
Harap-harap diset dengan betul or owner perlu set semula.

Ready For Delivery
Minyak terbaik dari MAXIMA

Charges RM45 For :
1. Cleaning
2. Services
3. Lubricate




to be update soon........
